Gayatri Tubes proffer Alloy Steel WP1 Pipe Fittings that are made according to the international standards of importance. The pipe fittings are made from Alloy Steel WP1 due to their impressive properties. These properties make the fittings perfect for working in different and critical applications. Also, not everywhere standard fittings are used hence we also manufacture custom fittings of varied dimensions. This alloy steel fall between the nickel and stainless steel and thus have advantages of both the types. The hardening of the fitting is known as precipitation hardening which is done through heat treatments. For decorative applications, the Alloy Steel WP1 Pipe Fittings like butt weld is cold rolled grease and annealed in bright conditions. However, the temperature cap on the reducer fitting is 1000 degree F that is set by the ASTM standards. Also, within the same range, the fittings acquire high strength. Thus, they are corrosion-free and intergranular corrosion is not a matter of concern in such an environment.
The low carbon content in this alloy makes welding easy. The service temperature of these Alloy Steel WP1 Seamless Pipe Fittings is the temperature range at which this alloy can be used that is 450 degrees C. on the other hand; there is a range for hot temperature working environment that is 1200-2250 degree F. then, these fittings are useful in vacuum furnaces, chemical processing and mechanical components.

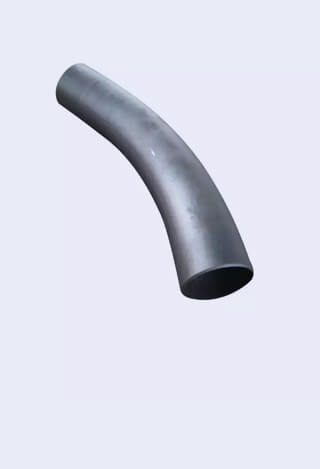

We make pipe fittings with long and short stub end, lateral tee, and long and short radius elbow, 45-degree elbow, buttweld, bends and more. We also serve conical, eccentric reducer and swage reducer that connects smaller welded pipes. Swage reducer is available in plain as well as a threaded end. Pipe union is also common pipe fittings that work as an alternative in applications where flanges are used. They are useful in the low-pressure bore of small dimensions. Also, unions have socket weld, threaded end and come in three pieces. These are a male end, a female end and a nut. The nut is used to provide the necessary pressure for the connection of two ends.
We export and supply them to clients all over the world after testing them well and packaging them in environmentally friendly materials.
| Specifications | ASTM A234 / ASME SA234 |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP1 | 0.28 max | 0.30- 0.90 | 0.10- 0.50 | 0.045 max | 0.045 max | - | 0.044-0.65 max |
| Tensile Strength , MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
| 220 min | 415 min | 20 min | 121-174 |
