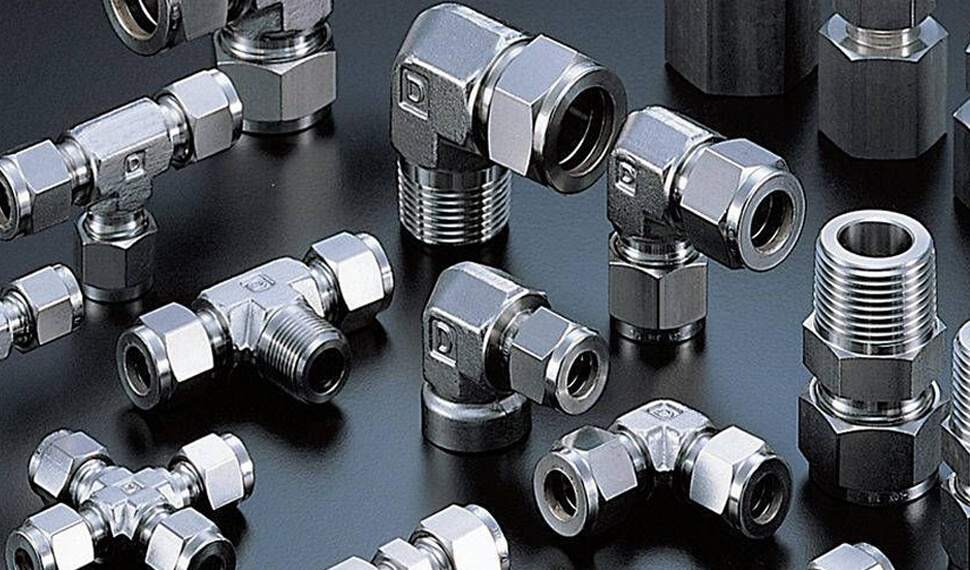

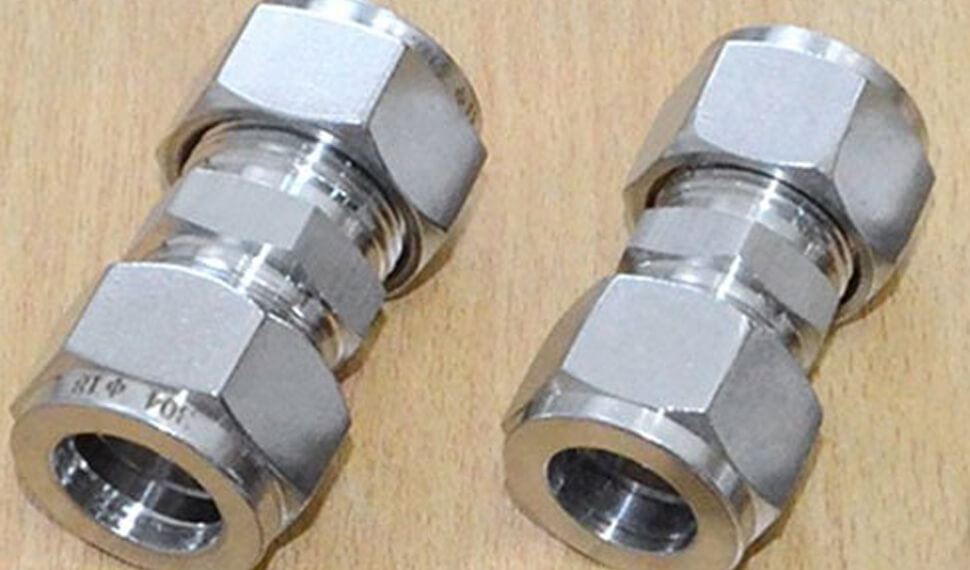

Gayatri Tubes is one of the leading suppliers in the field of compression tube fitting. Not only we are the top most suppliers of Compression Tube Fittings but we also manufacture, export and wholesaler of different range of fitting and our most popular fitting is Monel K500 Compression Tube Fittings. We ensure all our products are designed after following all the national and international standards in order to maintain the high quality of the products. There are many types of compression tube fittings that are available in variant shape, size, thickness, standards, designations, dimensions, and specifications, ranges, grades, and alloys, etc. Compassion fittings are widely used in big as well as small plumbing systems; electrical conduit systems in order to join the tubes which are in variant shape or size or in similar shape, size, as well. It is the most popular method of connecting tubes since it is very easy to install and does not demand much of your time in its installation process, unlike others.
In addition to this, compression fittings are highly used in places where there is a higher working temperature. It is also capable of holding pressure in the extreme working application industry. Also, the fittings compatibility with the aggressive fluids is just amazing, therefore it is widely seen at plumbing systems, gas line refineries, and many more.A compression fitting is basically designed with 3 of the most basic elements which include compression screws or a nut, few ferrules and any of the compression fitting bodies. There are many alloys via which these fitting are made up of but above all Monel N05500 Compression Tube Fittings are the most demanded product in the domestic as well as global market by our new and old clients.
Some of the common features offered by this fitting are good resistance properties, mechanical properties, and chemical properties, etc. It is highly resistant to corrosions, crevice resistant, pitting, chloride cracking, chloride stress, etc. It offers higher strength, tensile strength, yielding strength, mechanical strength, reliability, ductility, durability, formability, fabricability, weldability, and many more.Therefore it is used in some of the major applications like pulp and paper industry, condensers, chemical industries, etc.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
| PTFE Standards | ASTM D1710, ASTM D3294 |
| Size | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Thread | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Pressure Rating | K5000 PSI for Monel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
