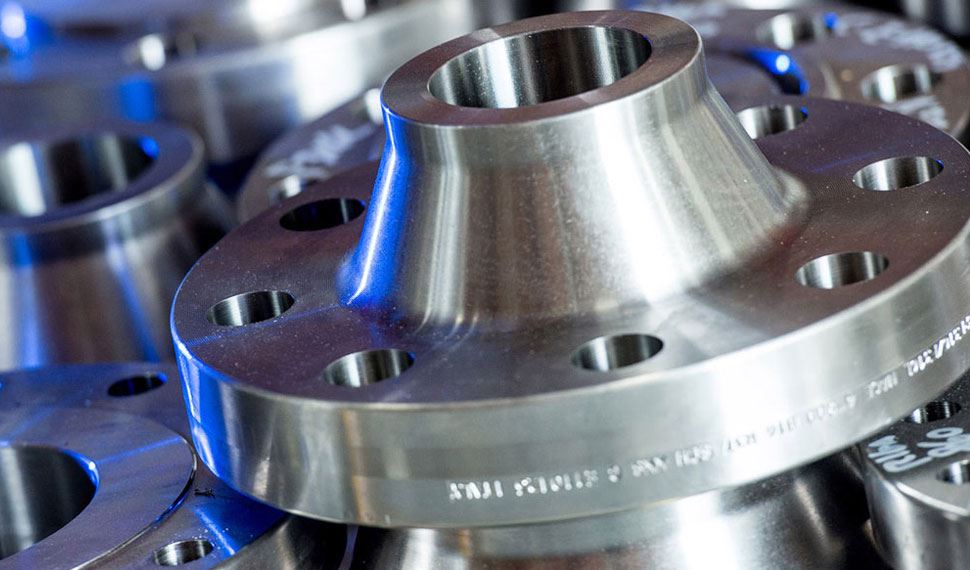

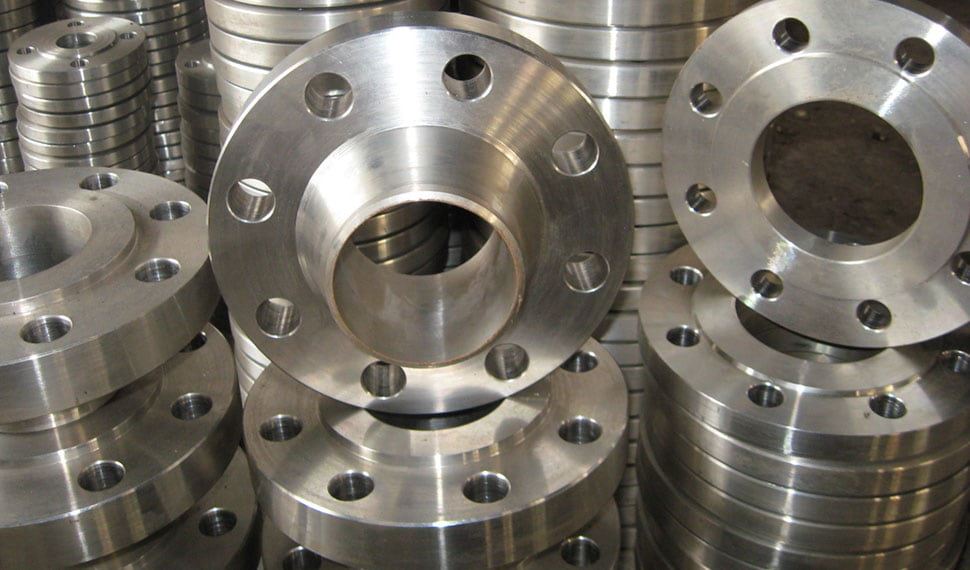

Gayatri Tubes is a popular supplier of different grades of flanges for the industrial operations across the globe. There are many products that are designed by the company are used in variety of operations. However, Monel k500 flanges hold a special place among the industrial companies. The integrated system that is used for designing of the products helps in building the trust among the notable clients. The delivery of the products is monitored with the help of technical systems and hence there is no delay. Flanges become popular choice during working of the piping systems. It is seen that to transfer the fluid over long distance, strong connections are required. Therefore, the presence of flanges becomes necessary. With the help of the flanges, all the pipes can be connected easily and fluids are transported without any losses. Thus flanges helps in maintaining the efficiency throughout the operation.
With the help of the flanges, regular maintenance of the pipes can be done easily. Different types of flanges are used for variety of operations. Requirement of the flanges for a particular operation is done through the analysis. This analysis not only helps in maintaining the operations streamline but also helps in choosing right material for right operation. The material that is used for making the flanges is Monel k500. Monel k500 is a combination of nickel and copper and is designed with a process called precipitation hardening. Using nickel and copper for making of flange, offers robustness and hardness to the flange. This ensures that flange can easily sustain any difference in temperature and pressure. Apart from the above mentioned process, age hardening process is also used. In the process of age hardening, stress resistance is developed in the flange and ability to bear the stress gets stronger.
The alloy also makes the flange ductile and malleable. This process helps in cutting down the flange easily and without any extra load. Different documents are used to provide credibility to the flange in the industry. Documents like ASTM certificate are offered by our company. The wooden casks are used for transportation of the flanges to ensure safe handling and transportation.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | - | - | - | - | - |
| Specifications | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2″NB TO 60″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| DIN Flanges | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| JIS Flanges | JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K |
| BS Flanges | BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
