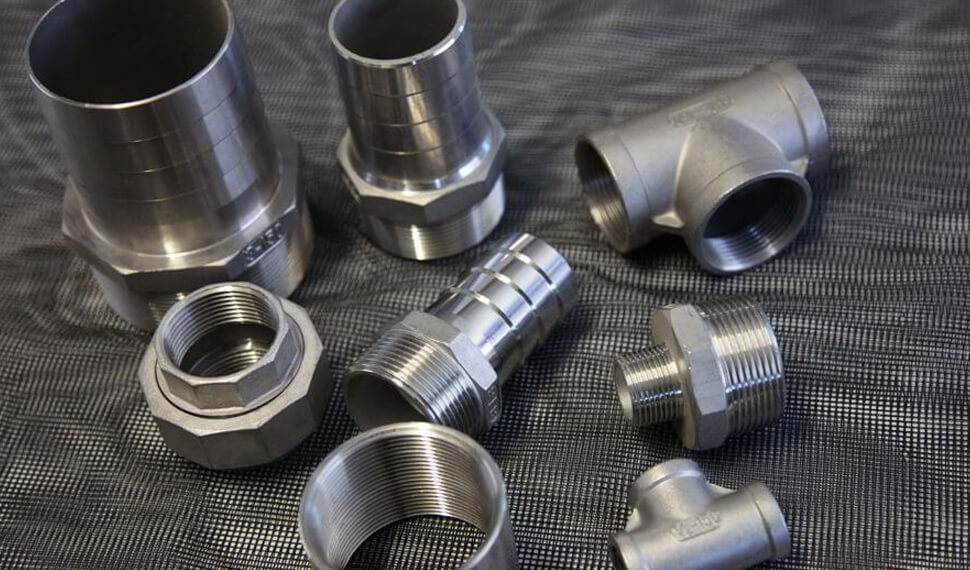

Gayatri Tubes, a leading manufacturer, exporter and supplier of one of the finest fittings that are Monel K500 Forged Fittings. We are manufacturing them in different dimensions as they are demanded by various industries. Liquid processing industries use threaded fittings manufactured using Monel K500 due to their prominent features. Durability and high strength are those prominent features. The K500 pipe fittings consist of copper in 29-34 percent and nickel as a base alloy. Their properties are increased by cold working or tempering the grade. This result proffers high-temperature resistant properties to the forged fittings of all types. Fittings like unions are useful in chemicals, marine engineering and processing equipment such as heat exchangers, pumps, valves and shafts. Also, fittings work as a part of the instruments.

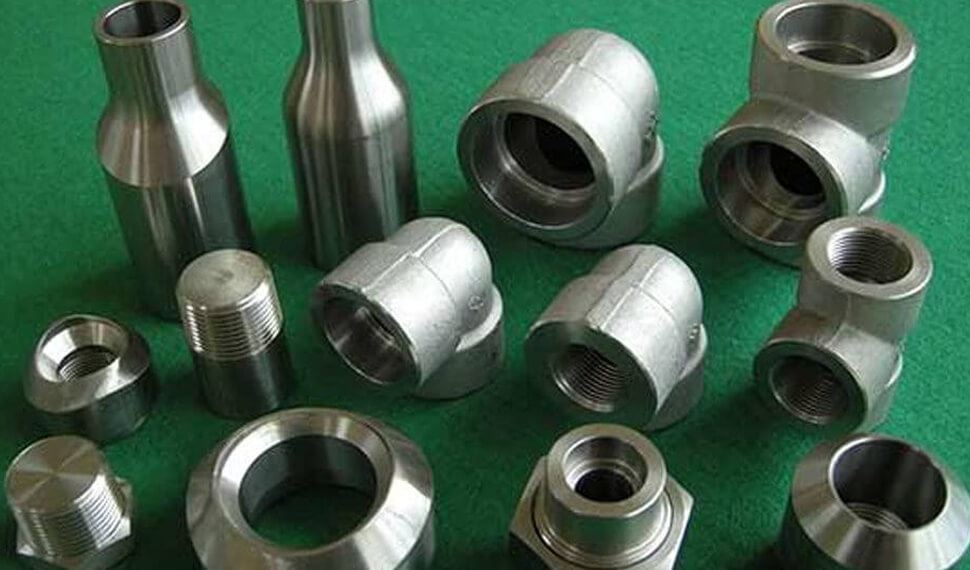

Many useful elements in Monel K500 Forged Fittings give them high strength, resistant to corrosion and magnetic properties. However, initially, they have low strength that is increased by performing a tempering number of times. They show magnetic behavior at room temperature only. Also, welding is possible using methods like gas-metal-arc, gas-arc, metal-arc and submerged-arc welding. Its deterioration resistant property makes it useful in marine and chemical processing equipment. The Monel K500 forged elbow fittings are also called as ells. They change the pipe’s direction and features different degree bends. Split pipe or sections of the tube are combined using either tee, cross and elbow fittings. They have either one input or two outputs that interesting the pipe at different degrees and angles. On the other hand, cross fittings intersect pipes only at the right angle and it has three outputs and one input.
Another common pipe fitting is union and coupling. We manufacture both of them in a number of designs and sizes. However, they perform similar functions that are connecting two pipe pieces or tube pieces. Compression Monel K500 forged fittings have a gasket ring called ferrule, a body, and a nut. They connect the component by using pressure and thus stop leakage. Caps and plugs are useful in connecting the end of pipes. They create a dead-end to the pipe. Valves are complex forged pipe fittings that control the fluid flow in any gaseous or piping system.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Monel K500 | 2.4375 | N05500 |
| Specifications | ASTM B564 & ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
