ASTM A53 Grade B Carbon Steel Pipe Manufacturer in India

Gayatri Tubes is one of the prominent suppliers, exporters, manufacturers and wholesalers of the wide range of pipes tubes and pipe fittings products. One of the most popular products of our company is ASTM A53 GR. B Carbon Steel Pipes which is a high-quality product manufactured after following all the national and international standards.

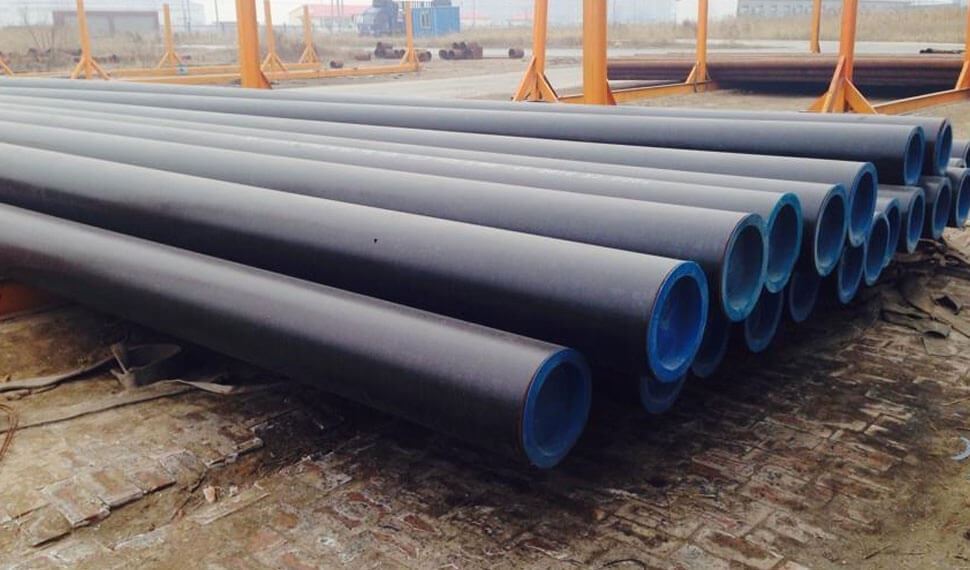

ASTM A53 Grade B Carbon Steel Pipe
Table of Content

ASTM A53 Grade B Carbon Steel Seamless Pipe, ASTM A53 Gr B Carbon Steel Pipes Manufacturer, ASTM A53 Carbon Steel Gr.B Pipe, ASTM A53 Carbon Steel Gr B Welded Pipe, ASTM A53 Carbon Steel Grade B ERW Pipes, ASTM A53 Grade B Seamless Carbon Steel Pipe, ASME SA53 CS Gr B Seamless Pipes, Astm A53 Gr. b Carbon Steel Pipes, ASTM A53 Grade B Zinc-Coated Pipes, Carbon Steel Gr B Electric Resistance Welded Pipes, ASTM A53 Grade B Carbon Steel Pipe Supplier in Mumbai, India.

There are a wide variety of pipes available with us. This pipe can be used in various sizes, thicknesses, dimensions, specifications, grade alloys, shapes, features, materials, etc. But the most demanded pipe in our collection is ASTM A53 GR. B Carbon Steel Pipes fulfills all the major carbon steel pipe requirements in several application industries.

A53 CS Grade B High Pressure Pipe, ASTM A53 Gr B Carbon Steel Pipes Exporter, ASTM A53 Carbon Steel Pipes, ASTM A53 CS K03005 Pipes, ASTM A53 CS 1.0040 Pipes, Carbon Steel Pipe ASTM A53 Grade B, ASTM A53 Carbon Steel Gr B Round Pipe, A53 Carbon Steel Pipe, A53 Carbon Steel Gr.B Pipes Stockist, ASTM A53 Carbon Steel Grade B Pipe Manufacturer In India.

A53 CS Grades B electric resistance weld Pipe, ASTM A53 Seamless Pipes, ASTM A53 Gr B Carbon Steel Pipes Supplier, ASME SA53 Carbon Steel Gr B Pipe, ASTM A53 Grade B Hot-Dipped Pipes, ASME SA53 CS Gr B HR Pipes Stockist, ASTM A53 Grade B Black Pipes, ASTM A53 Grade B Pipe, ASTM A53 Gr.B ERW Pipe Manufacturer In India.

Pipes are the products used to convey any gases or liquid substance from one place to the other place. Various pipes can be manufactured with different materials like plastic, wood, fibreless, glass, copper, aluminum, concrete aluminum, etc. The ASTM A53 GR. B Carbon Steel pipes are widely used as low-pressure plumbing or structural steel in different pipe systems.

Some of the best features of Carbon Steel Pipes in grade ASTM A53 GR. B are that it is specially designed for pressure and mechanical applications. It is best suited for welding and forming operations which include flanging, coining, and bending subjects to a certain level. In addition, it is reliable, corrosion-resistant, durable, high strength and a strong product.

Also Check : Low Temperature CS Seamless Pipes

ASTM A53 Carbon Steel Grade B Pipes Equivalent Grades

UNS KS JIS DIN Type DIN Number EN
K03005 SPPS42 STPG410 St45 / St42-2 1629 /1626 1.0408/1.0040


ASTM A53 CS K03005 Piping Materials

ASTM A53 Grade B Carbon Steel Pipe
ASTM A53 Carbon Steel Grade B Pipe
ASTM A53 Grade B Carbon Steel Seamless Pipe, ASTM A53 Carbon Steel Gr B Welded Pipes, ASTM A53 Carbon Steel Gr.B Seamless Pipes, ASTM A53 CS 1.0408 Welded Pipe, ASTM A53 Grade B CS ERW Pipe, ASME SA 53 CS Grade B Welded Pipes.
ASTM A53 UNS K03005 Pipe
ASTM A53 CS UNS K03005 Pipe
ASTM A53 CS K03005 Seamless Pipe, Carbon Steel K03005 Pipe, ASTM A53 CS K03005 Welded Pipe, ASTM A53 CS UNS K03005 ERW Pipe, ASTM A53 CS 1.0408 Pipes.


ASTM A53 Grade B Carbon Steel Pipe Specification

Specifications ASTM A53 / ASME SA 53
Standard A53, API 5L, ASME B36.10M-1996 DIN1626, DIN1629, DIN17175, DIN 2448 JIS G3452, JIS G3454, JIS G3455, JIS G3456, JIS G3457, JIS G3461
Grade Grade B
Size 1/2" NB to 36" NB
Thickness SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Length Single Random, Double Random & Cut Length or As per customer's requirement
Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tube
Surface Black painting, Zinc Coated, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE,etc


Types Of ASTM A53 Grade B Carbon Steel Pipes

  • ASTM A53 Grade B Carbon Steel Pipe Supplier
  • ASTM A53 Gr B Carbon Steel Pipes
  • ASTM A53 Carbon Steel Gr.B Pipes Manufactrer
  • ASTM A53 CS K03005 Seamless Pipe
  • ASTM A53 CS 1.0040 Pipes
  • ASTM A53 Carbon Steel Grade B Seamless Pipes
  • ASTM A53 Grade B Seamless Carbon Steel Pipe
  • ASTM A53 Gr. b carbon steel Black pipes
  • Carbon Steel K03005 ERW Pipes
  • A53 Gr B Carbon Steel ERW Pipes
  • A53 Carbon Steel Gr.B Large Diameter Seamless Pipe
  • Carbon Steel A53 Grade B Pipes
  • ASME SA53 Grade B Carbon Steel Welded Pipe
  • ASTM A53 CS K03005 Welded Pipes
  • Carbon Steel Hot-Dipped Pipe Astm A53 Grade B
  • Astm A53 Gr. B Carbon Steel Zinc-Coated Pipes


ASME SA 53 Carbon Steel Gr.B Pipe Chemical Composition

Grade C Mn P S Cu Ni Cr Mo V
B 0.3 1.2 0.05 0.045 0.4 0.4 0.4 0.15 0.08


A53 Carbon Steel Gr B Pipe Mechanical Properties

Grade Tensile strength, min, psi (MPa) Yield strength, min, psi (MPa)
B 60,000 (415) 35,000 (240)


A53 Carbon Steel Gr B Pipe Dimension Standard

NPS Designator DN Designator Outside Diameter Inside Diameter Wall Thickness Nominal Weight (Mass) per unit Length
(mm) (mm) (mm) Plain End (kg/m) Threads & Couplings (kg/m
1/8″ 6 10.3 6.8 1.73 0.37 0.37
1/4″ 8 13.7 9.2 2.24 0.63 0.63
3/8″ 10 17.1 12.5 2.31 0.84 0.84
1/2″ 15 21.3 15.8 2.77 1.27 1.27
3/4″ 20 26.7 20.9 2.87 1.69 1.69
1″ 25 33.4 26.6 3.38 2.5 2.5
1-1/4″ 32 42.2 35.1 3.56 3.39 3.4
1-1/2″ 40 48.3 40.9 3.68 4.05 4.04
2″ 50 60.3 52.5 3.91 5.44 5.46
2-1/2″ 65 73 62.7 5.16 8.63 8.67
3″ 80 88.9 77.9 5.49 11.29 11.35
3-1/2″ 90 101.6 90.1 5.74 13.57 13.71
4″ 100 114.3 102.3 6.02 16.07 16.23
5″ 125 141.3 158.2 6.55 21.77 22.07
6″ 150 168.3 154.1 7.11 28.26 28.58
8″ 200 219.1 202.7 8.18 42.55 43.73
10″ 250 273 254.5 9.27 60.29 63.36
12″ 300 323.8 304.8 9.52 73.78 76.21


Available length of SA53 Gr.B pipes

Standard Weight
Single Random — 16′ – 22′. 5% may be jointers. If Plain Ends — 5% may be 12′ – 16′.
Double Random — Shortest Length 22′, minimum average for order 35′.
Extra Strong and Double Extra Strong
Single Random — 12′ -22′. 5% may be 6′ – 12′.
Double Random (XS and lighter) — Shortest Length 22′, minimum average for order 35′.
Lengths longer than single random with wall thicknesses heavier than XS subject to negotiation.

O.D. Over Under
Outside Diameter NPS 1/8 to 1-1/2 DN 6 to 40 1/64″ (0.4mm) 1/64″ (0.4mm)
NPS 2 and up DN 50 and up 1% 1%
Wall Thickness at Any Point ——– 12.50%
Weight 10% 10%


ASTM A53 Grade B Pipes Schedule Chart

NB OD Size 40S 5S 10S S10 S20 S60 S40 S80 XS/80S S120 S100 S160 S140 XXS
13.72 1/4 1.7 2.24 3.02
17.15 3/8 1.7 2.31 3.2
20 26.67 3/4 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 33.4 1 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 42.16 1 1/4 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 48.26 1 1/2 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 60.33 2 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 73.03 2 1/2 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
90 101.6 3 1/2 5.7 2.1 3.1 5.74 8.08 8.08
100 114.3 4 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
150 168.3 6 7.1 2.8 3.4 7.11 11 10.97 14.3 18.3 22
300 323.9 12 9.5 4 4.6 6.4 14.3 10.3 17.5 12.7 25.4 21.4 33.3 28.6 25.4
350 355.6 14 9.5 4 4.8 6.4 7.9 15.1 11.1 19.1 12.7 27.8 23.8 35.7 31.8
450 457.2 18 9.5 4.2 4.8 6.4 7.9 19.1 14.3 23.8 12.7 34.9 29.4 45.2 39.7
500 508 20 9.5 4.8 5.5 6.4 9.5 20.6 15.1 26.2 12.7 38.1 32.5 50 44.5
600 609.6 24 9.5 5.5 6.4 6.4 9.5 24.6 17.5 31 12.7 46 38.9 59.5 52.4
650 660.4 26 9.5 7.9 13 12.7
750 762 30 9.5 6.4 7.9 7.9 13 12.7
800 812.8 32 9.5 7.9 13 17.5 12.7
900 914.4 36 9.5 7.9 13 19.1 12.7


Available Types of ASTM A53 Carbon Steel Grade B Pipes

ASTM A53 Carbon Steel Grade B Seamless Pipe
ASTM A53 Grade B Carbon Steel Seamless Pipe, A53 Carbon Steel Gr.B Seamless Pipe, Carbon Steel Gr B Seamless Pipe, UNS K03005 Seamless Pipe, 1.0408 Seamless Pipes, ASTM A53 Grade B Carbon Steel Seamless Pipes.
ASTM A53 Grade B Carbon Steel Welded Pipe
ASTM A53 Grade B Carbon Steel Welded Pipe, A53 Carbon Steel Gr.B Welded Pipe, Carbon Steel Gr B Welded Pipe, UNS K03005 Welded Pipe, 1.0408 Welded Pipes, ASTM A53 Grade B Carbon Steel Welded Pipes.
ASTM A53 Grade B Carbon Steel ERW Pipe
ASTM A53 Grade B Carbon Steel ERW Pipe, A53 Carbon Steel Gr.B ERW Pipe, Carbon Steel Gr B ERW Pipe, UNS K03005 ERW Pipe, 1.0408 ERW Pipes, ASTM A53 Grade B Carbon Steel ERW Pipes.
ASTM A53 Grade B Carbon Steel Round Pipe
ASTM A53 Grade B Carbon Steel Round Pipe, A53 Carbon Steel Gr.B Round Pipe, Carbon Steel Gr B Round Pipe, UNS K03005 Round Pipe, 1.0408 Round Pipes, ASTM A53 Grade B Carbon Steel Round Pipes.
