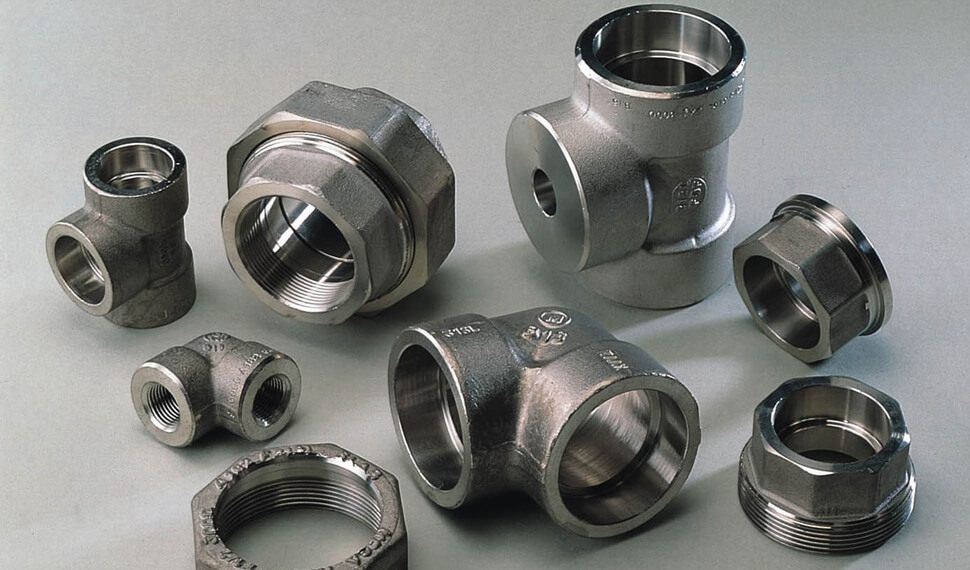

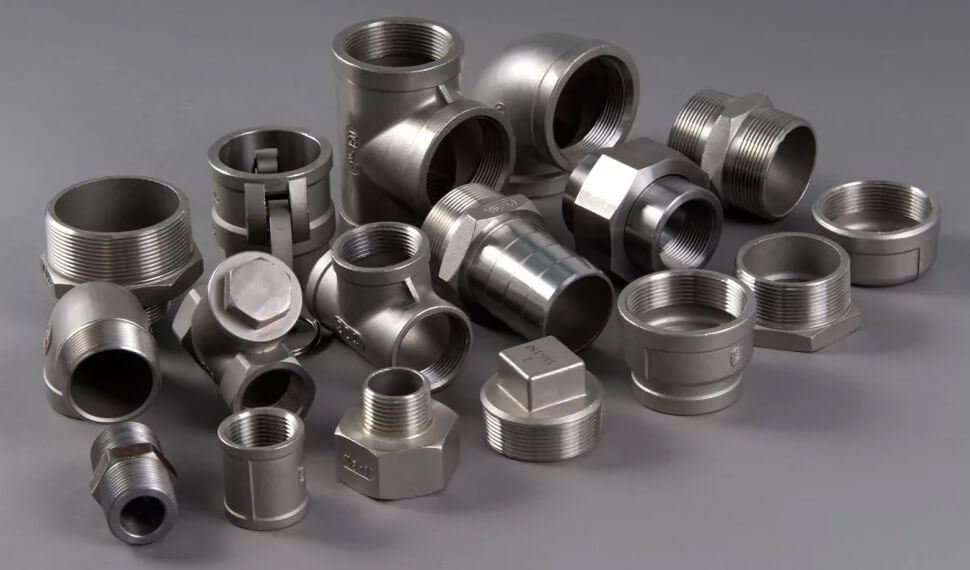

Gayatri Tubes is a leading producer and distributor of the very good quality of quantities range of Inconel 600 Forged Fittings. We are the client-oriented industry we manufacturer this product in various specifications, standards, classes and sizes for easily meeting the diverse demands of the clients. Also, we specialize in making and offering forged fittings to the clients at customized specifications. These Inconel 600 Forged Fittings are made available to the clients at various types. It is like Inconel 600 threaded forged pipe fittings, Inconel 600 welding outlet, Inconel 600 forged reducer, Inconel 600 nipple outlet, Inconel 600 welding outlet, Inconel 600 couplings, Inconel alloy end pipe cap, ASME 16.11 forged elbow, ASTM B564 Alloy UNS N06600 Socketweld Forged Fittings, Alloy 60 deg Socketweld elbow, and Inconel 600 street elbow and Inconel UNS N06600 equal tees.
Today these forged fittings are found used in various applications industry. Some of them are power generation, pharmaceutical equipment, offshore oil drilling, condensers, seawater equipment, petrochemicals, gas processing, pharmaceuticals, specialty chemicals, heat exchangers. Forged pipe fittings are designed according to ASME MSS-SP-97/83/79/95/, B16.11 and BS3799 standards. It is used for connecting the nominal bore schedule pipelines and pipe. It is used in many applications like power generation and other applications wherein conditions like high pressure, vibration and too much corrosiveness exists. Forged pipe fittings are available in 2 materials that are stainless steel and carbon steel. The carbon steel surface can be reinforced against corrosion by the technique named galvanizing.
Inconel 600 is chromium and nickel-based alloy that offers commendable oxidation resistance ability at greater temperature along with resistance ability in an atmosphere containing chloride and in carburizing as well. Inconel 600 is developed for use from the temperature of cryogenic to elevated temperature (1093 deg C). The addition of nickel is enabling it in retaining resistance under reducing situations and makes it be corrosion resistant through several inorganic/organic compounds. This material is nonmagnetic and is having good mechanical strength and good working ability and is weldable readily. Inconel 2.4816 Socket weld Fittings are subjected to tests for checking the quality. The tests done are IGC test, toughness test, mechanical and chemical strength checking, etc.
| STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | GOST | EN |
| Inconel Alloy 600 | N06600 | 2.4816 | NCF 600 | NC15FE11M | NA 13 | МНЖМц 28-2,5-1,5 | NiCr15Fe |
| Specifications | ASTM B564 & ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
