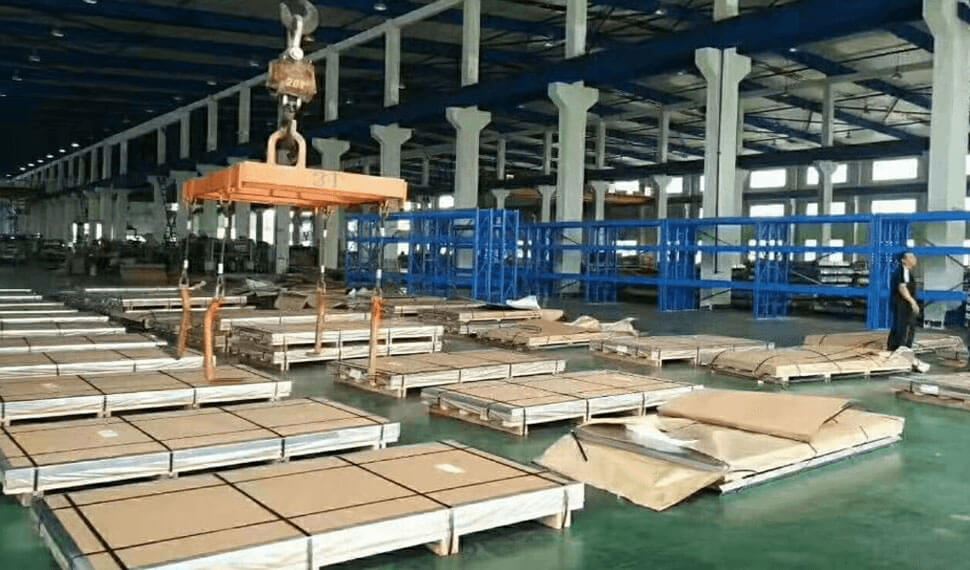

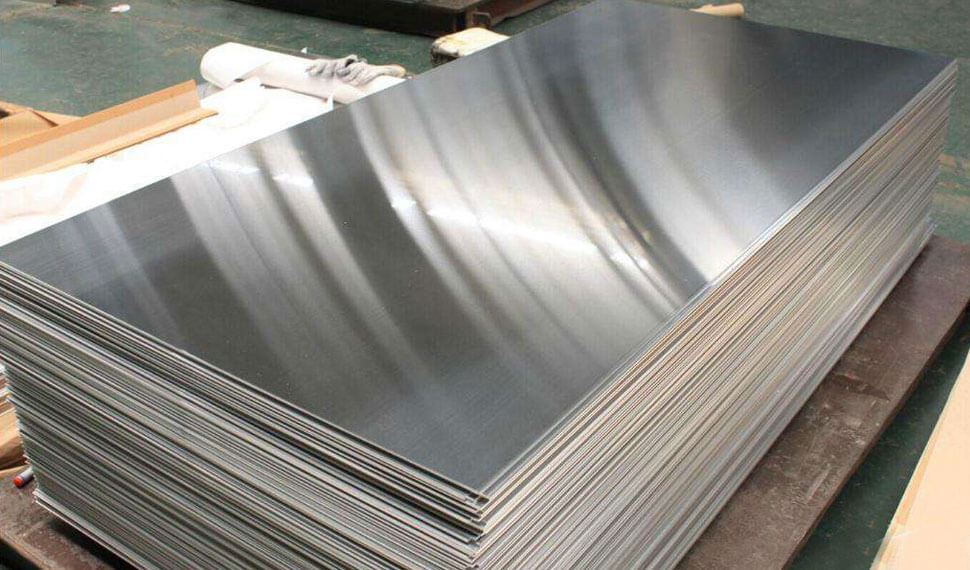

Gayatri Tubes is the best manufacturer, exporter, and supplier of Alloy 20 Sheet Plate / Structurals. We are providing these sheets and plates in various specifications. Specifications that are present are surface finish, end finish, dimensions, shape, size, and many more. National and international quality standards are also followed in the manufacturing of Sheet Plate / Structurals. We are also providing them as per the expectations and specifications of the clients. The products are also available in the global market for all clients.
Sheet plates are used in the construction industries as the support of the pipes and tubes. They are available in various types to be used according to the specifications of the clients. Hot rolled, pickled, oiled, aluminum and cold rolled are some of the types of sheet plates. Structurals are a type of pipe fittings that are used to develop the types of pipes and tubular structures among the industries. They are used in the industries and are locked down with the help of set screws. Moreover, the structural pipe fittings are available in various types. Flats, round, angles, channels, beam, rebar, and many other types which are available in the market. The alloy 20 is having excellent general corrosion resistance in the elevated temperatures. This is because of the presence of copper and molybdenum elements. They are having more chloride stress corrosion cracking of the alloy while working in the industries.
Alloy 20cb3 Sheet Plate / Structurals are available with various properties. Some of the properties that are inherited in the product are corrosion resistance, stability in the elevated temperatures, great durability, high durability, and various other properties. The properties are the reason that they are used in the industries in various applications. Petrochemicals, pharmaceuticals, oil and gas, and many other industries are there which is using the sheet plate/ Structurals. Alloy 20 CB-3® Sheet Plate / Structurals are well-tested before delivering it to the clients. Hardness, hydrostatic, micro, macro, positive material identification, ultrasonic and intergranular corrosion resistance are some of the tests which are performed. However, they are performed as per the expectation of the clients.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
| Specifications | ASTM B463 / ASME SB463 |
| Dimensions | ASTM, ASME, and API |
| Plates Thickness | thickness ranges from .0125" to 5.00" |
| Sheets Thickness | thickness range from .008" to .0125" |
| Sheets Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, C2760mm, etc |
| Angle Size | 3/4″ THRU 8″ |
| Angle Thickness | 1/8″ thru 5/8″ |
| Beams Weight | 19.6 |
| Beams Length | 20′to 22′Random length |
| Channels Size | 30mm*15mm*15mm*1mm-300mm*150mm*150mm*30mm |
| Channels Diameter | 50x37x5mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
