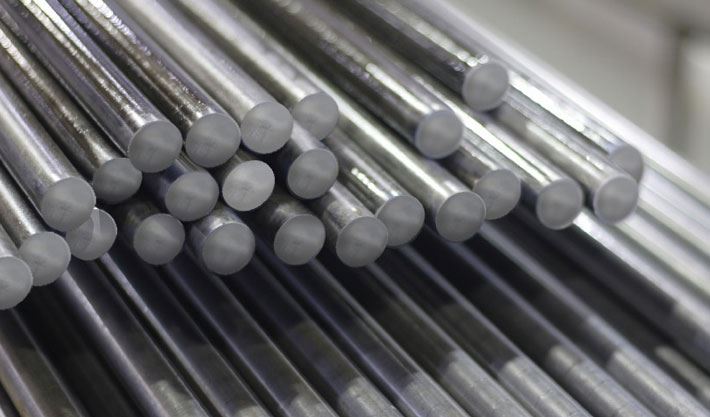

Gayatri Tubes are one of the leaders in the manufacturing and supplying of excellent quality Alloy 20 Rod, Bars, Wire, Wire Mesh. We supply our products not only in India but also in various countries. We manufacture our products following the international standard and so our products are certified. We have products of different dimensions and also offers to make custom based designs for our customers.
Alloy 20 or carpenter 20, is an alloy of iron, chromium, and nickel. The alloy was developed targeting maximum resistance from acids especially sulfuric acid. This alloy offers excellent resistance from crevice, corrosion and also pitting in acidic environment. They also protect themselves from the attack of nitric acid, phosphoric acid. They also contain silicon, sulfur, phosphorus, manganese, carbon, and Molybdenum.
The alloy also contains an element name Niobium that offers stabilization of this alloy against intergranular corrosion. They have excellent mechanical properties and offers great strength. They are easy to fabricate. They were originally made for the purpose to keep the safety from acid attack but now it is also used in various other industries as well. They are also gaining popularity in the industries related to chemicals, foods, plastics and pharmaceutical industries. The alloy is also used in the making of heat exchangers, mixing tanks, metal cleaning, and also piping and pickling types of equipment.

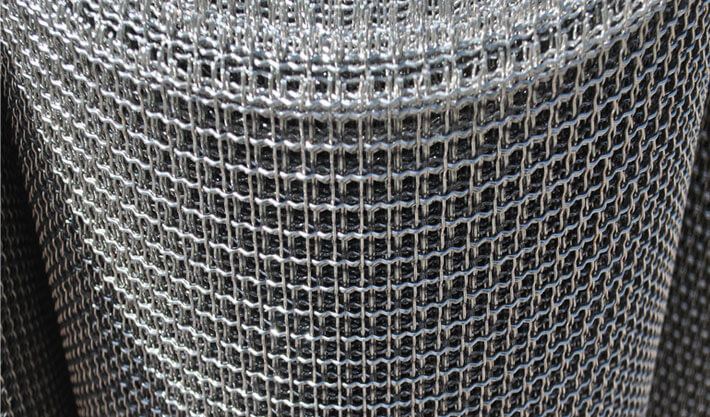

The alloy is readily available in the form of sheets, plates, bars, wire mesh, and wires. They are excellent against general corrosion, resistance to chloride resistance cracking. They can be easily used in food and dye production, petrochemical industries, bubble caps, reactor vessels. They have to pass the stress test, intergranular test, corrosion test to prove their reliability. They come with all the documents related to its usability, weight, and material quality and their welding process reports.
We make good quality Alloy 20CB3 Rod, Bars, Wire, Wire Mesh. Our products have passed several lab tests and so are reliable. We also have plenty of stock of our products to meet any demands of quantity by our clients. We also ensure the safe packaging and transportation of our products to prevent any damage to the products.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
| Specifications | ASTM B473 / ASME SB473 |
| Standards | DIN, ASTM, ASME, BS and all International Standards |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Diameter | Outside Diameter in the range of 4mm to 500mm |
| Width | 1m to 48″ |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| Flat Bars | 1/2” to 10” in the thickness range of 2mm to 150mm, |
| Wire Length | Max 12000 mm |
| Wire Mesh Length | 30m to 100″ |
| Wire Diameter | 5.5 – 400 mm |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging, Wire Mesh, Hexagonal Wiremesh, Welding Wiremesh, Netting Wiremesh, Woven Wiremesh, Spring Steel wire mesh, Fencing Wiremesh Etc |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
