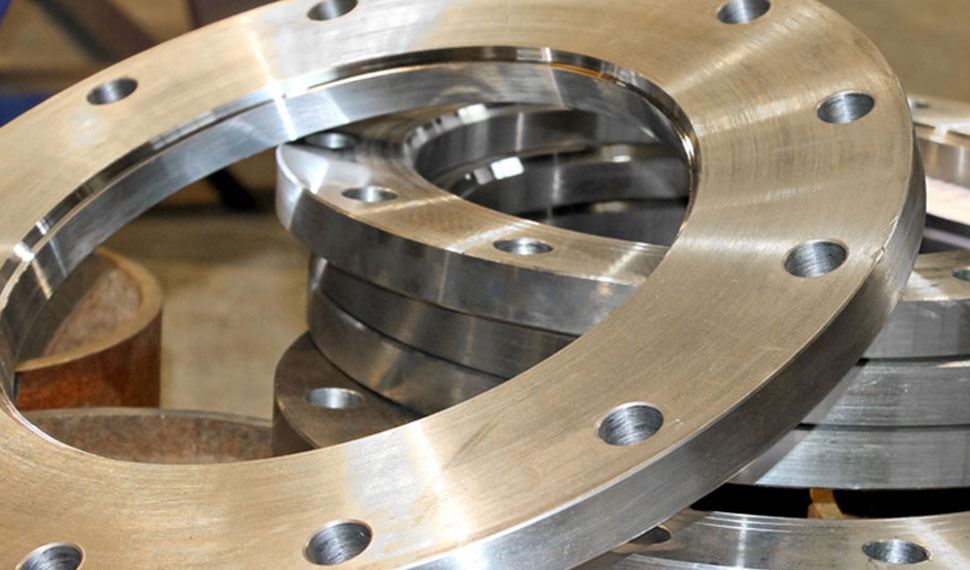

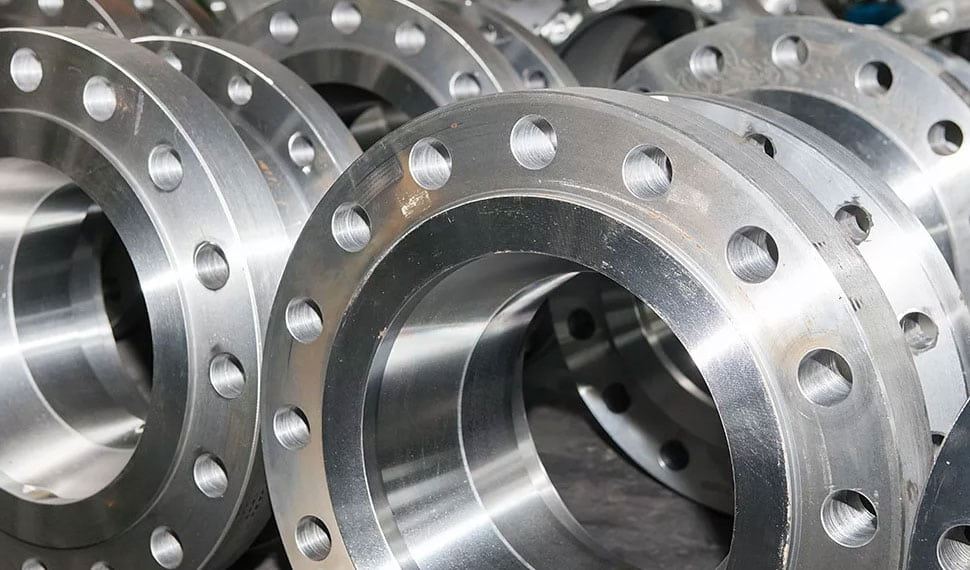

Gayatri Tubes is the leading manufacturer and distributor of the very good quality of Titanium Gr 2 Flanges. These flanges are designed according to the set manufacturing norms and set product quality standards. It is delivered to the clients in different specifications, standards, dimensions, classes, and sizes. Also, it is offered to the buyers at custom-made specifications as per the demands they have made. Titanium Gr 2 Flanges are provided to the clients in different types. It includes Ti Gr 2 slip-on flanges, Ti Gr 2 threaded flanges, Ti Gr 2 plate flanges, Gr2 Ti long weld neck flanges, Ti Gr 2 ASTM B564 ring type joint flanges, Ti DIN 3.70356 flanges. Also, the other types are including AISI Ti Gr 2 reducing flanges, Ti Gr 2 square flanges, Ti Gr 2 spectacle blind flanges, Ti UNS R50400 Socketweld flanges, etc.
The features such as low weight ratio, very good ability to resist corrosion and high tensile strength are making its usage to the ranges of applications in industries. Toady these flanges are used in applications like automotive, aerospace, chemical plant, oil & gas industry, specialty chemical, pharmaceuticals, etc. Ti Gr 2 slip-on flanges are the solid solution alloy that by the cold working process is hardened. On Ti Gr 2 threaded flanges welding methods like metal arc welding, gas arc welding, etc are recommended. The hardwearing machining tackles for eliminating the chatter can be used in Gr 2 weld neck flanges. Ti Gr 2 blind flanges are resistance to attack by alkalis and acids and are having very good ductility and high mechanical properties. ESR process makes sure in supplying Ti Gr 2 ring joint type flanges of commendable quality.
Titanium Gr 2 Flanges are sent for the tests and the tests that are done on it are hardiness tests, pitting resistance tests, mechanical strength analysis, chemical composition checking, positive material identification tests and so on. The documents that are attached and offered to the clientele are fumigation certificate, QAP, packaging list, heat treatment chart, MTC as per EN10204/3.1b, radiography test report, and third party test report and so on.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Specifications | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2″NB TO 60″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| DIN Flanges | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| JIS Flanges | JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K |
| BS Flanges | BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
