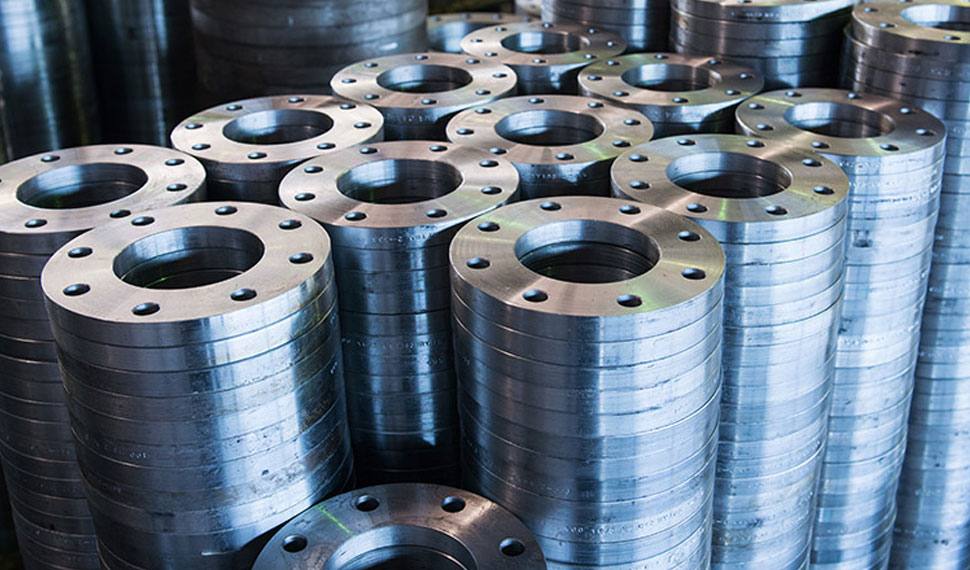

Gayatri Tubes is the best manufacturer of the Titanium Gr 5 Flanges. We provide these flanges in product quality standards (ASTM, ASME). These flanges are made useful in aerospace engines and in the airframe parts and in non-aerospace applications like marine industries, off-shore and power generation, etc. It is having very good hardiness than the commercial titanium though it is having very good properties like stiffness and so on. Also, it is being used in the applications that are easily able to tolerate 400 deg C. It is having chemical configuration like 4% of vanadium, 6% of aluminum, 0.2% of oxygen, 0.25% of iron and remaining is titanium. Among it has many other plus points, one is improved heat working condition.We cater to the different needs of the esteem patrons and are providing flanges at different standards, dimensions, sizes, classes, specifications. Also, Titanium Gr 5 Flanges are made available to the patrons at custom-made specifications and standards as per the client’s demands.

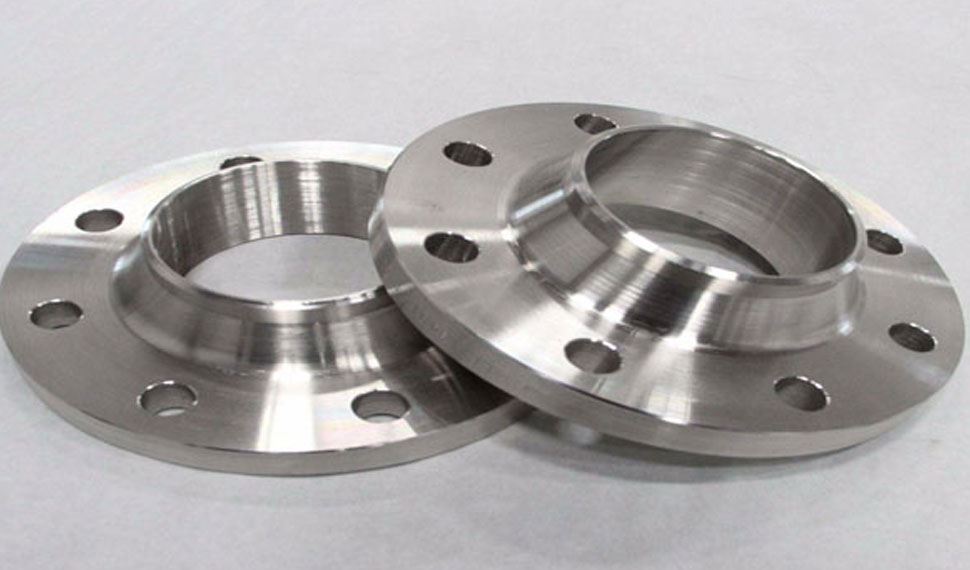

These titanium Gr5 flanges are made available to the clients at various types. Some are like Ti Gr5 reducing flanges, Ti Gr5 weld neck standard flanges, Ti Gr5 blind flanges, Ti Gr5 slip-on flanges, Ti Gr5 socket weld flanges, Ti Gr5 orifice flanges. The other types are too available including Ti Gr5 long weld neck flanges, Ti Gr5 threaded flanges, Ti Gr5 RTJ flanges, and Ti Gr5 forged flanges. Titanium Gr 5 slip-on Flanges are the solid solution alloy that by the technique of cold working is hardened. On Ti Gr5 threaded flanges welding techniques like a metal arc or gas arc welding etc techniques are suggested. Very much heavy weighted machining tools are used on Ti Gr5 weld neck flanges in order to eliminate chatters. Ti Gr5 blind flanges are resistance to attack by both acids and alkalis and offer very good ductility and mechanical strength.
Titanium Gr 5 Flanges are subjected to various testing. Few tests done on it is hardiness tests, pitting resistance test, chemical tests, and mechanical tests. Also, the other tests like IGC and PMI tests, flattening and flaring test, macro, and micro tests are done for checking strength and quality.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Specifications | ASTM B564 / ASME SB564 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1/2″NB TO 60″NB |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| DIN Flanges | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| JIS Flanges | JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K |
| BS Flanges | BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | - | 0.25 max | - | - | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
