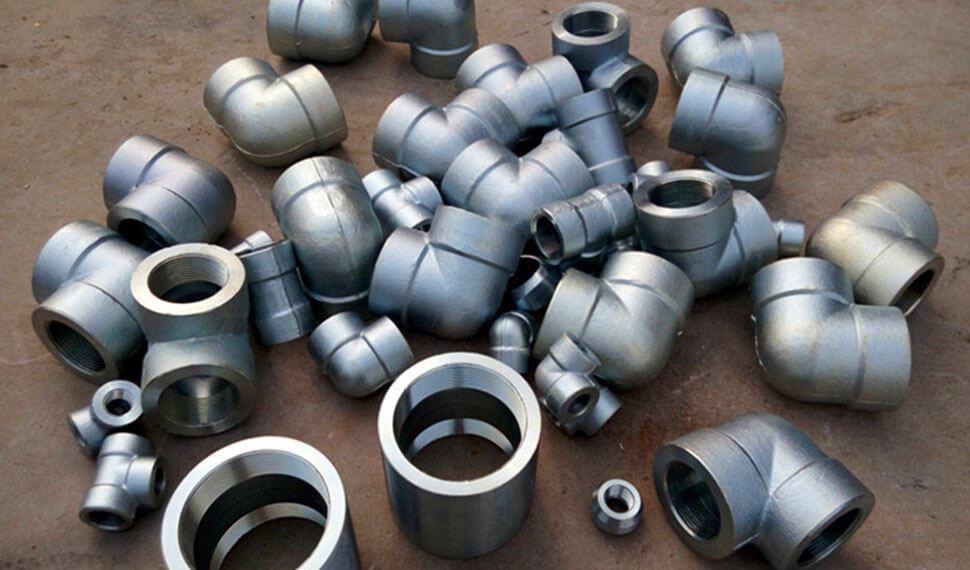

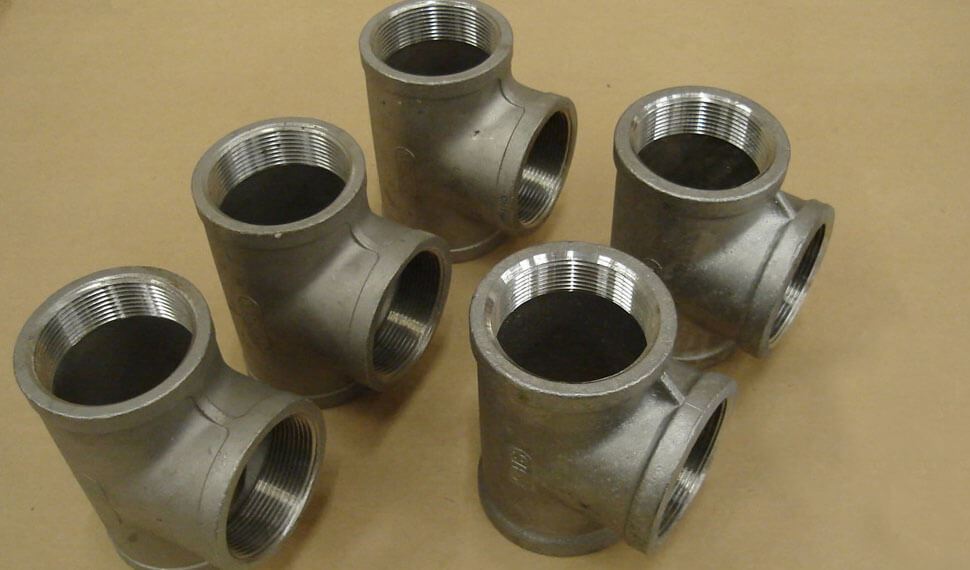

Gayatri Tubes are worldwide manufacturer, supplier and exporter of the wide ranges of Titanium Gr 2 Forged Fittings. We are providing forged fittings as per the expectations of the clients. National and international quality standards are also followed in the manufacturing forged fittings. Forged fittings are the type of pipe fittings that are developed by the forged steel. They are available in the socket weld end connections according to the application which is to be used. Forged fittings are not large in size as they are normally adopted by the production of forged fittings. There are many types of forged fittings that are used in the industries for various purposes. Among them, tees are such types of pipe fittings that are used. Tees is the type of fitting that is used to divide the flow process. There is a reducing tee that allows the pipes to change its size.
Elbows are the type of pipe fittings that are installed in the length pipes and tubes. This allows the pipe to change the direction according to the task that they need to perform. Similar to the reducing tees there are reducing elbow. This is used to change the direction and the size of the diameter according to the workflow. Couplings are one of the pipe fittings that are used to join the length of pipes with each other. They are screwed into the pipe while it is tightly inserted. These are some of the pipe fittings that are made with the forging process.
Moreover, they are used in many industries. Some of the industries are petrochemical, pharmaceuticals, oil and gas, pulp and paper and many more fittings. The Titanium R50400 Socket weld Forged Fittings have various features and characteristics. This is the reason that they are widely used in the industries. Some of the characteristics are corrosion resistance, stability in the elevated temperature, durability, high ductility, and weldability. Titanium 3.7035 Threaded Forged Fittings are tested before moving to the clients. Some of the tests that are performed are hardness, hydrostatic, ultrasonic, micro and macro, and many others. However, this is done to ensure the clients that all the pipe fittings are developed as per their expectations.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Titanium Gr. 2 | 3.7035 | R50400 |
| Specifications | ASTM B381 & ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6010 LBS, 9000 LBS |
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
