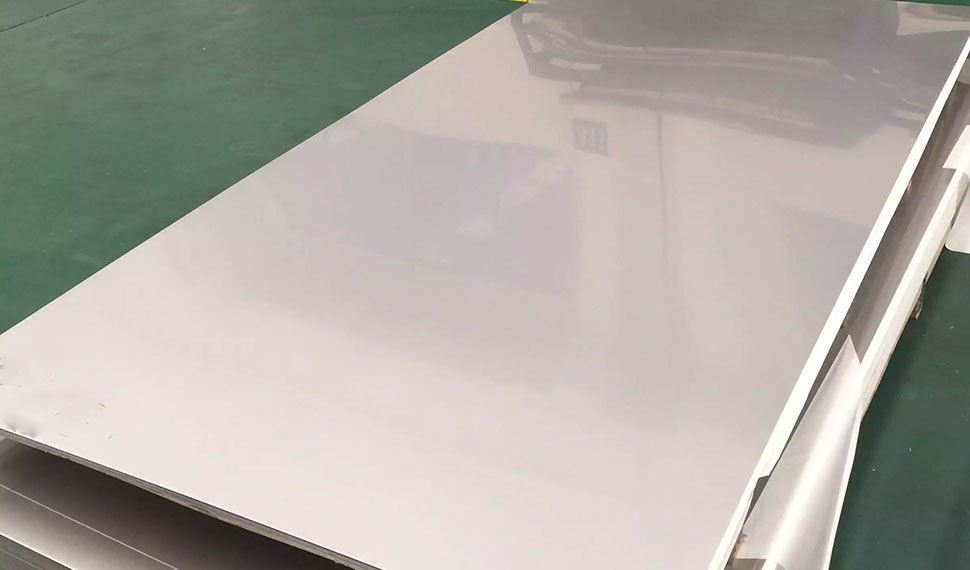

Gayatri Tubes take pride in being one of the leading suppliers and manufacturers of Titanium Gr 5 Sheet Plate Structural. We incline towards rendering innovative products and solutions for our diverse group of clients. Titanium Gr 5 Sheet Plate / Structurals comes with a distinctive feature in comparison to its other counterparts. It requires annealing to attain great performance attributes. It means to post, and pre-heat treatment becomes needed. A highly popular product due to its utilization in several industrial applications across the globe. This product contains substantial content of hydrogen. The alloy gives you excellent formability and welding abilities. It is extremely resistant to the marine environment and fairly resistant to corrosion, which makes it versatile for many uses.
The mechanical strength of these sheets makes them highly tolerant. It comes with an appealing finish and low weight. These sheets possess some extraordinary properties like high consumption resistance and better electrical conductivity compared to other sheets. So these sheets prove a perfect blend of lightweight, high quality and erosion and corrosion resistance. Its leading physical properties are workable density, high coefficient of expansion and high rigidity. Titanium Alloy Grade 5 Sheet Plate / Structurals is prevalent in many oil and natural gas exploration and transportation applications. Many petrochemical industries use these plates in building apt machinery. To go with that chemical industry, industries that manufacture heavy-duty industrial machinery, power generation, and transmission industries use these sheets for various applications. Even its use has been witnessed in paper and pulp making industries, several applications of the food processing industry and oil refineries.

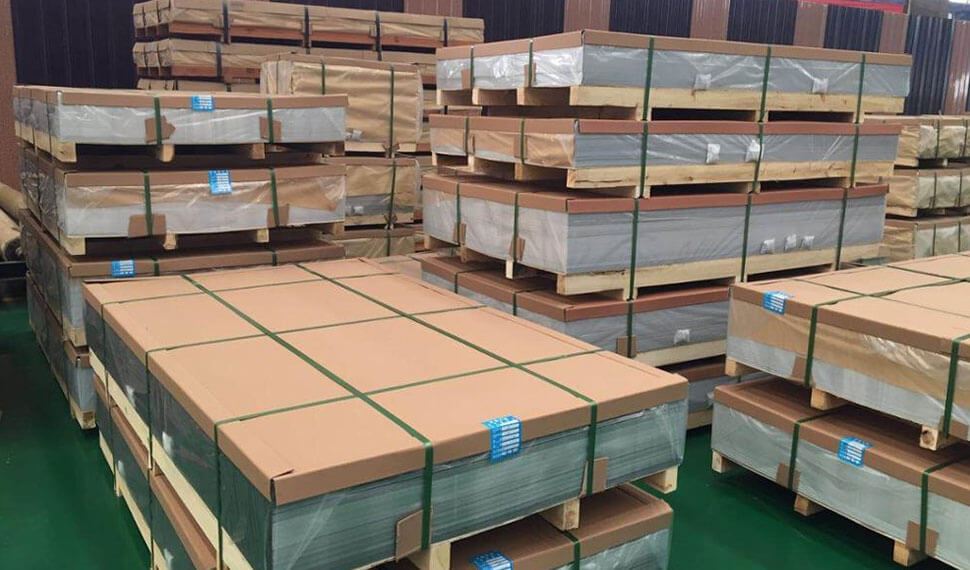

To supply the best in a class quality product to our clients is our biggest consent. And to make it happen smoothly, we make our product testified for mechanical and chemical analysis testing. Our products have come out with shining colors in all of these tests. Apart from that, our sheets are certified globally. We ensure that we package the sheets as per the client’s requirements. We pack these in wooden carts or carton boxes as per the need to ensure its safety while transportation.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | N56400 |
| Specifications | ASTM B265 / ASME SB265 |
| Dimensions | ASTM, ASME, and API |
| Plates Size | 0.187" - 2.000" |
| Sheets Size | 0.012" - 0.125" |
| Sheets Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, Gr.50mm, etc |
| Angle Size | 3/4″ THRU 8″ |
| Angle Thickness | 1/8″ thru 5/8″ |
| Beams Weight | 19.6 |
| Beams Length | 20′to 22′Random length |
| Channels Size | 30mm*15mm*15mm*1mm-300mm*150mm*150mm*30mm |
| Channels Diameter | 50x37x5mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Titanium Gr.5 | 90 min | - | 0.25 max | - | - | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
